Build Extensions using Qntrl Studio

Extension is a software module that can be installed to expand the functionality of Qntrl. It could be a feature enhancement, third-party integration, or any such value addition. Qntrl Marketplace hosts a wide range of extensions which can be installed in Qntrl. Extensions in Qntrl Marketplace are only compatible with Qntrl, so you'll need to be a Qntrl user to take full advantage of their capabilities.

If you want to build your own custom extensions, you can create them using Qntrl Studio. This document is a step-by-step guide to build and host custom extensions.

Benefits of building Qntrl Extensions
  1. Increase your visibility
  2. Establish your own customer base
  3. Provide expertise
  4. Develop and maintain retailer relationships
  5. Enjoy the cost-benefits of production and development
  6. Easy installation and source of revenue
  7. Develop a variety of customers



Create Workspace

A developer is allocated a workspace to build and host their extensions. You can be the owner or user for more than one workspace. Also, ensure to have a Qntrl account with the email address through which you are creating the workspace.

  1. Go to the Qntrl Studio in your web browser.
  2. Sign up to create a new account or log in if you already have one.
  3. Click Create Workspace after specifying your workspace name .


Extension Visibility

Extensions in Qntrl Marketplace can be either Public or Private.

Public extension s are created and published through Qntrl Marketplace where all users can view, install, and use them in Qntrl. You can charge a fee from users to install your public extensions. These type of extensions are usually for a larger audience, beyond an organization level.

Public extensions go through a review process by our team of Qntrl Marketplace experts who validate your extension. Once validated successfully, the extension gets listed in Qntrl Marketplace. Get a detailed insight on the review process.

Private extensions can be viewed, installed and used only by users with whom the extension is shared. The users will receive an installation email in their email ID from where they can install and use the extension. Private extensions can be shared specifically with users or teams or organizations, often restricted to smaller circles.

Private extensions do not require any manual review process by our team of experts as it is automatically validated by Qntrl Marketplace platform, before publishing it. Once published, it is immediately available for use.

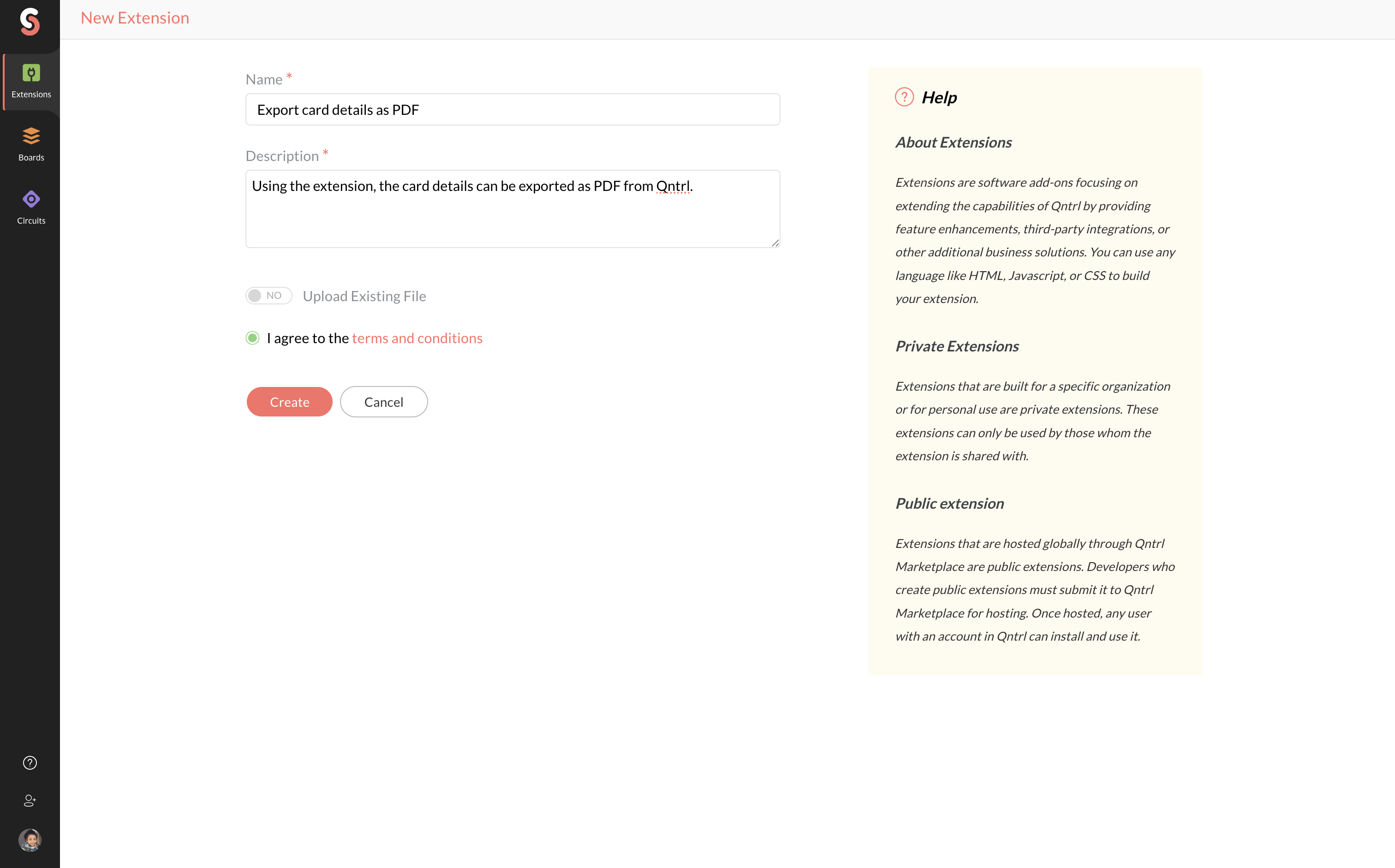

Create Extension

  1. Navigate to Extensions at the top panel and click the New Extension button.
  2. Enter the details.
    1. Name: Enter a suitable name for the extension.
    2. Description: Enter a description for the extension.
    3. Upload Existing File: If you already have all the code required for the extension, you can upload the .zip file directly.
  3. Read through the 'Qntrl Developer Agreement' before you check the box to agree to it.
  4. Click Save as Draft.
 You will now be redirected to an editor where you can code the script.

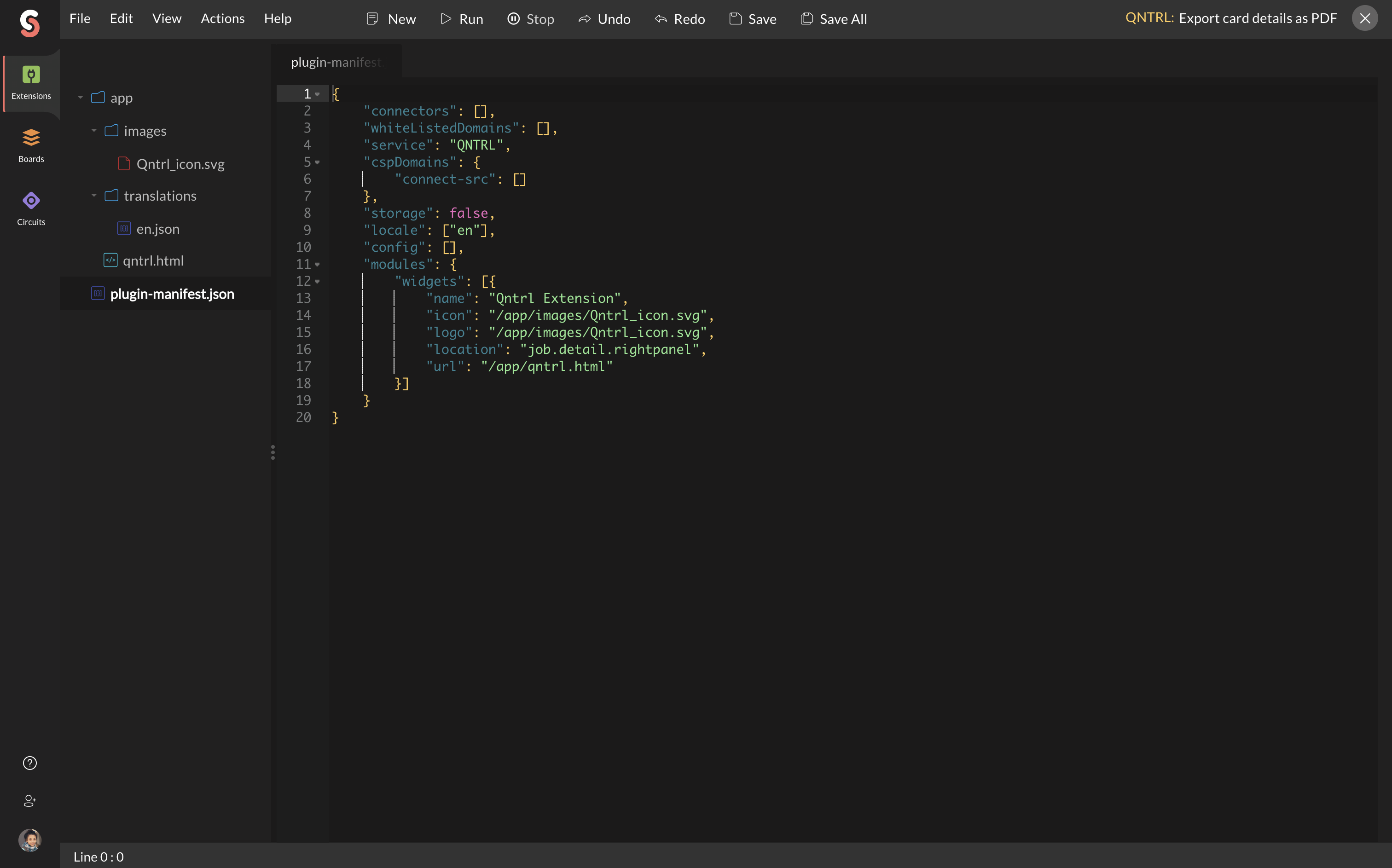

Editor components

  1. File: Add a new function, trigger, event, file or folder. You can also open a file, save a file, save all files, or exit from the editor.
  2. Edit: Undo or redo any action.
  3. View:  View and associate the current extension with an existing function or trigger.
  4. Actions
    1. Run: Click Run to execute the extension in Qntrl. You will be redirected to a new page where the extension will be loaded in the mentioned location. Changes made in the code will reflect immediately on the extension.
    2. Stop: Click Stop to stop the execution.
    3. Regenerate Manifest: Regenerate your plugin-manifest file based on the associated functions and triggers. Incase of any corruption or issue due to wrong configuration of the plugin-manifest file, use this option to reconfigure the manifest file.
  5. Help: Get to know the keyboard Shortcuts to work more conveniently with the code editor.



Publish Extension

Once you code and test your extension, it is ready to be published.
  1. Navigate to  Extensions and hover over the extension you want to publish and click  icon.
  2. In the ensuing page, click Publish.
  3. Select the type of Extension Visibility - Private or Public.
    1. Private extensions can only be used by users with whom the extension is shared. It will be available for installation immediately after publishing.
    2. Public extensions can be hosted for a wide audience using Qntrl Marketplace. To host a public extension in Qntrl marketplace, ensure to fill the Marketplace Details form. Once the extension is submitted, it will go through a review process and then hosted in Qntrl Marketplace to be made available to the users. You can view the status of your extension from Qntrl Marketplace.
  4. Click Publish.

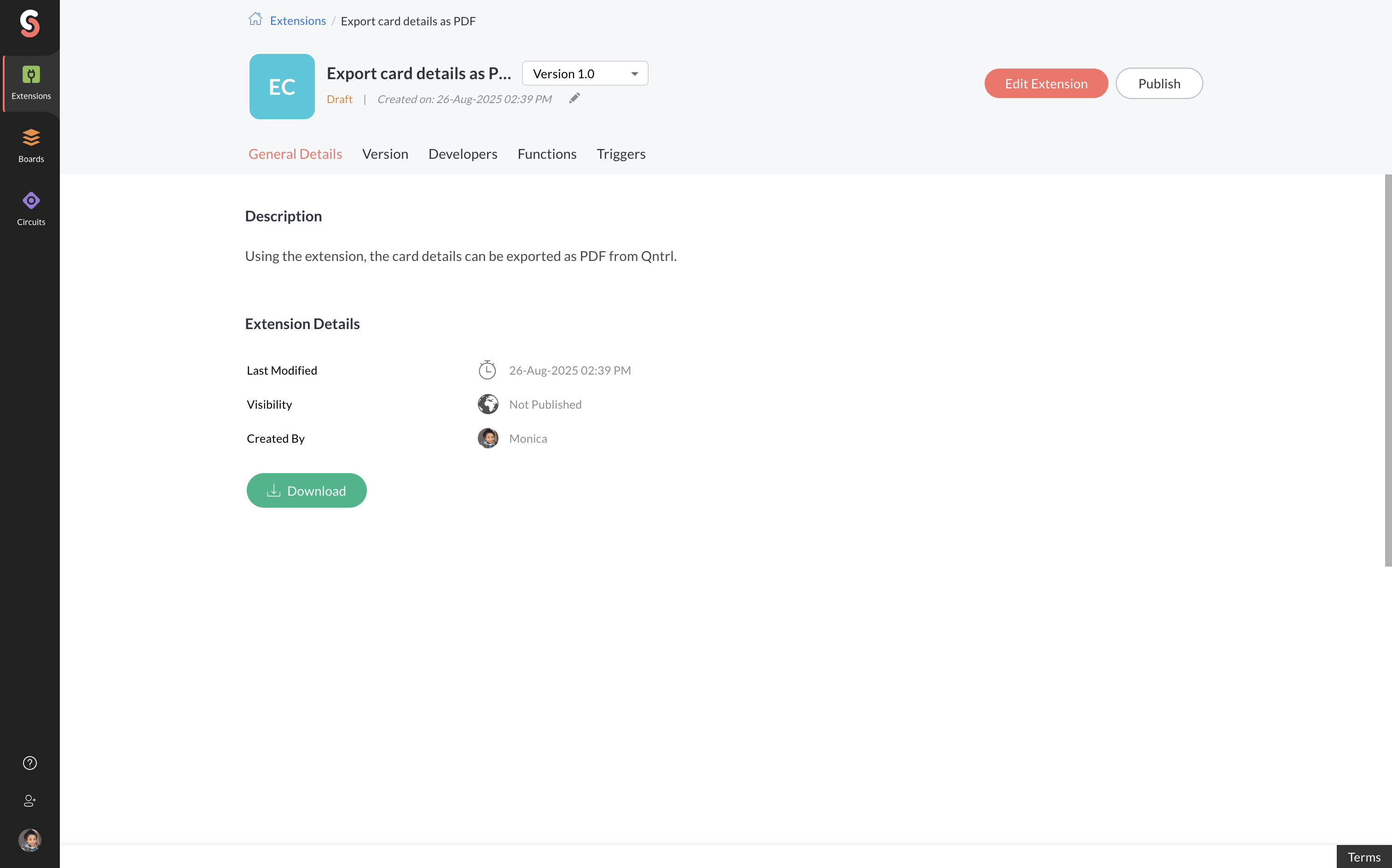

Extension Details

The details of the extension can be viewed by clicking .

General Details: This tab provides the basic details like description, visibility type, extension owner, extension stats - Installation Stats  and Trigger Execution Stats , etc.
Click Download  to download a .zip file of your extension.  Click icon to edit the extension details.
Version: This tab lists the details of all versions of the extension including the version, status, date created, and date updated.
Developers: This tab allows you to associate the required developers for the extension, or view the list of existing associated developers.
Functions: Associate with the required functions, or view the list of existing associated functions here.
Triggers: You can create a trigger, or view the list of existing triggers.
