Business Case: Automating Order Management

Scenario

Consider a retail company that uses Qntrl to manage its order fulfillment process. The company has an external e-commerce platform that receives orders from customers and needs to integrate with Qntrl to process these orders automatically.

Using Inbound SOAP Web Services, the e-commerce platform can send order details to Qntrl, which then validates the request, processes the order, and updates the inventory system.

How It Works

A customer places an order on the e-commerce website.
The website sends a SOAP request to Qntrl’s inbound SOAP endpoint with the order details (e.g., Order ID, Customer ID, Product ID, Quantity, and Order Date).
Qntrl processes the request and:

Validates the order details (ensures product availability, checks for duplicate orders, etc.).
Updates the order management system with the new order.
Sends a SOAP response confirming successful order creation.

The e-commerce platform receives the response and updates the customer with order confirmation details.

Business Impact

      ✅ Automated order processing reduces manual work and errors.
      ✅ Faster response times improve customer experience.
      ✅ Seamless integration between external platforms and Qntrl.

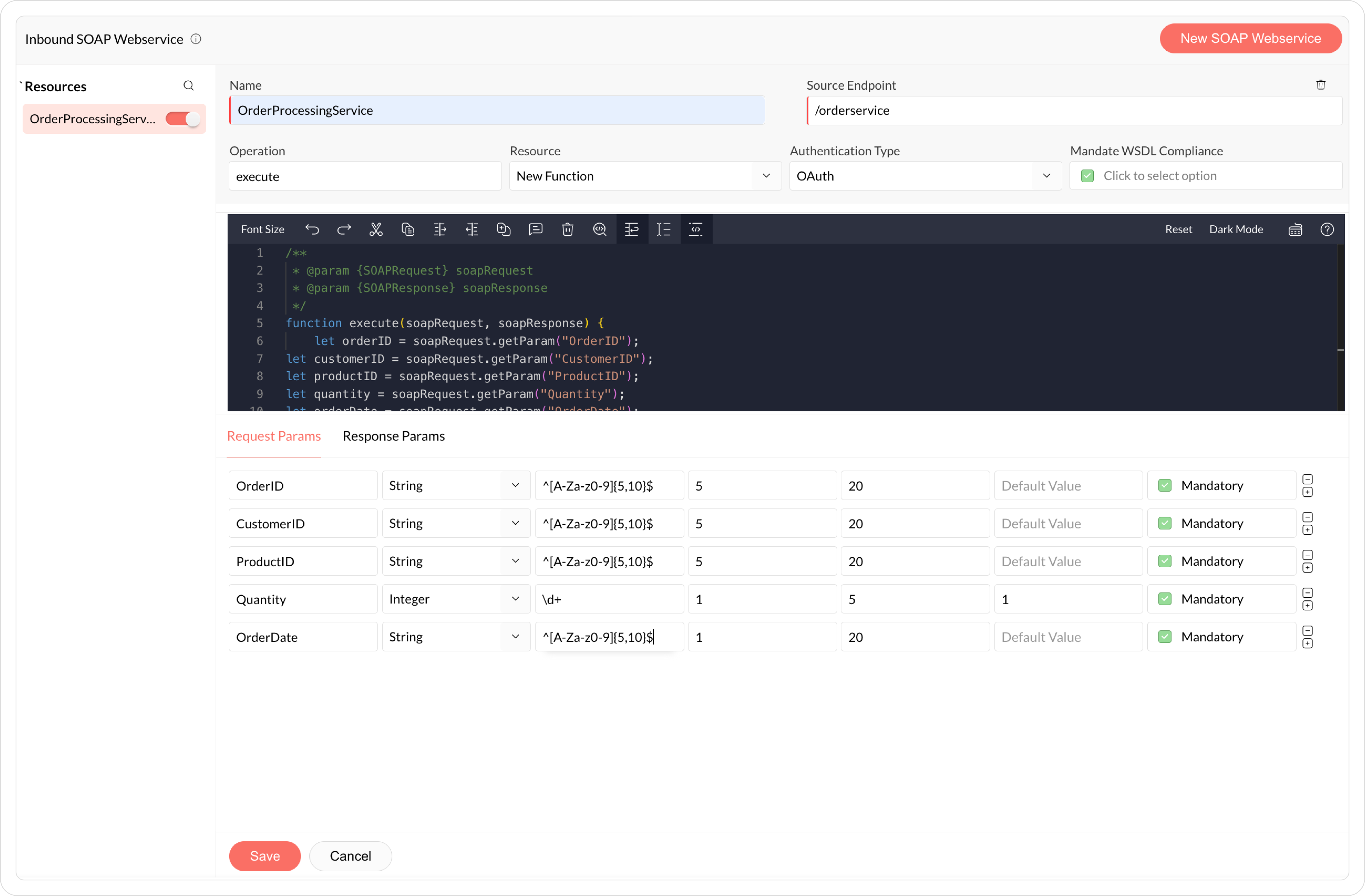

Step-by-Step Process to Create an Inbound SOAP Web Service

Define the SOAP Service

Login to Qntrl.
Navigate to (settings) >> WEB SERVICES >> Inbound >> Select SOAP.
Click Create New SOAP Webservice.
Fill in the service details to enable Qntrl to receive and process SOAP requests from the e-commerce platform.

Name: OrderProcessingService
Source Endpoint: /orderService (This will be the URL external systems call to send orders)
Operation: execute (Default operation for processing requests)
Resource: Create a new function to define how Qntrl processes incoming SOAP requests.

Write a function in the editor to validate order details, store them in the order management system, and return a confirmation response.

Authentication Type: Set up authentication to ensure secure communication between the e-commerce platform and Qntrl.

OAuth
API Key
Basic Authentication (username and password encoded in Base64)

Mandate WSDL Compliance (Optional)

True: Only the predefined request/response parameters and operations are allowed.
False: Allows additional parameters but enforces validation rules.

Define Request Parameters and Response Parameters

These request parameters define the order details sent by the e-commerce platform.

Parameter	Type	Allowed Regex	Min Length	Max Length	Default Value	Mandatory
OrderID	String	^[A-Za-z0-9]{5,10}$	5	20	-	✅
CustomerID	String	[^[A-Za-z0-9]{5,10}$	5	20	-	✅
ProductID	String	^[A-Za-z0-9]{5,10}$	5	20	-	✅
Quantity	Integer	\d+	1	5	1	✅
OrderDate	Date	^[A-Za-z0-9]{5,10}$	-	-	-	✅

These response parameters define the order confirmation details returned to the e-commerce platform.

Parameter	Mandatory
Status	✅
OrderReference	✅

Processing SOAP Requests in Qntrl

Handle Incoming SOAP Requests

Qntrl uses the soapRequest object to process the request and extract values.

let orderID = soapRequest.getParam("OrderID");
let customerID = soapRequest.getParam("CustomerID");
let productID = soapRequest.getParam("ProductID");
let quantity = soapRequest.getParam("Quantity");
let orderDate = soapRequest.getParam("OrderDate");

// Business logic: Validate and store the order
if (!validateOrder(orderID, customerID, productID, quantity, orderDate)) {
  soapResponse.setFault("INVALID_ORDER", "Order validation failed.");
} else {
  let orderRef = processOrder(orderID, customerID, productID, quantity, orderDate);
  soapResponse.setParam("Status", "Success");
  soapResponse.setParam("OrderReference", orderRef);
}

Sending a SOAP Response

Qntrl sends back an XML response confirming whether the order was processed successfully.

Sample SOAP Response

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
  <soapenv:Body>
    <OrderResponse>
      <Status>Success</Status>
      <OrderReference>ORD12345XYZ</OrderReference>
    </OrderResponse>
  </soapenv:Body>
</soapenv:Envelope>

Making API Calls to the SOAP Web Service

Requesting the WSDL Definition

Method: GET
URL Format: https://core.qntrl.com/webservice/soap/<ZSOID>/orderService?wsdl
Purpose: External systems can retrieve the WSDL definition to understand available operations.

Sending an Order Request

Method: POST
URL Format: https://core.qntrl.com/webservice/soap/<ZSOID>/orderService
Body: (XML Request)

 <soapenv:Envelope
 xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
 xmlns:ord="https://core.qntrl.com/webservice/soap/orderManagement">

  <soapenv:Header>
    <ord:AuthHeader>
      <ord:Username>APIUser</ord:Username>
    </ord:AuthHeader>
  </soapenv:Header>

  <soapenv:Body>
    <ord:PlaceOrder>
      <ord:OrderID>ORD67890</ord:OrderID>
      <ord:CustomerID>CUST54321</ord:CustomerID>
      <ord:ProductID>PROD1122</ord:ProductID>
      <ord:Quantity>2</ord:Quantity>
      <ord:OrderDate>2025-04-10</ord:OrderDate>
    </ord:PlaceOrder>
  </soapenv:Body>

</soapenv:Envelope>
