Connectors

Connectors serve as a repository for storing and organizing the necessary parameters to establish a database connection. The connectivity parameters stored within a connector are utilized to establish a secure connection between the bridge and an in-house database.

When retrieving values from a remote machine's database, it is essential to use both Connectors and the Bridge in conjunction. This combined usage ensures secure access to the client's database.

A connector can be reused in any bridge to communicate with a remote database.

Create a Connector

To create a new connector:

  1. Click the settings gear iconat the left pane.

  2. Navigate to Advanced >> Bridge >> choose Connectors.

  3. Click New Connector.

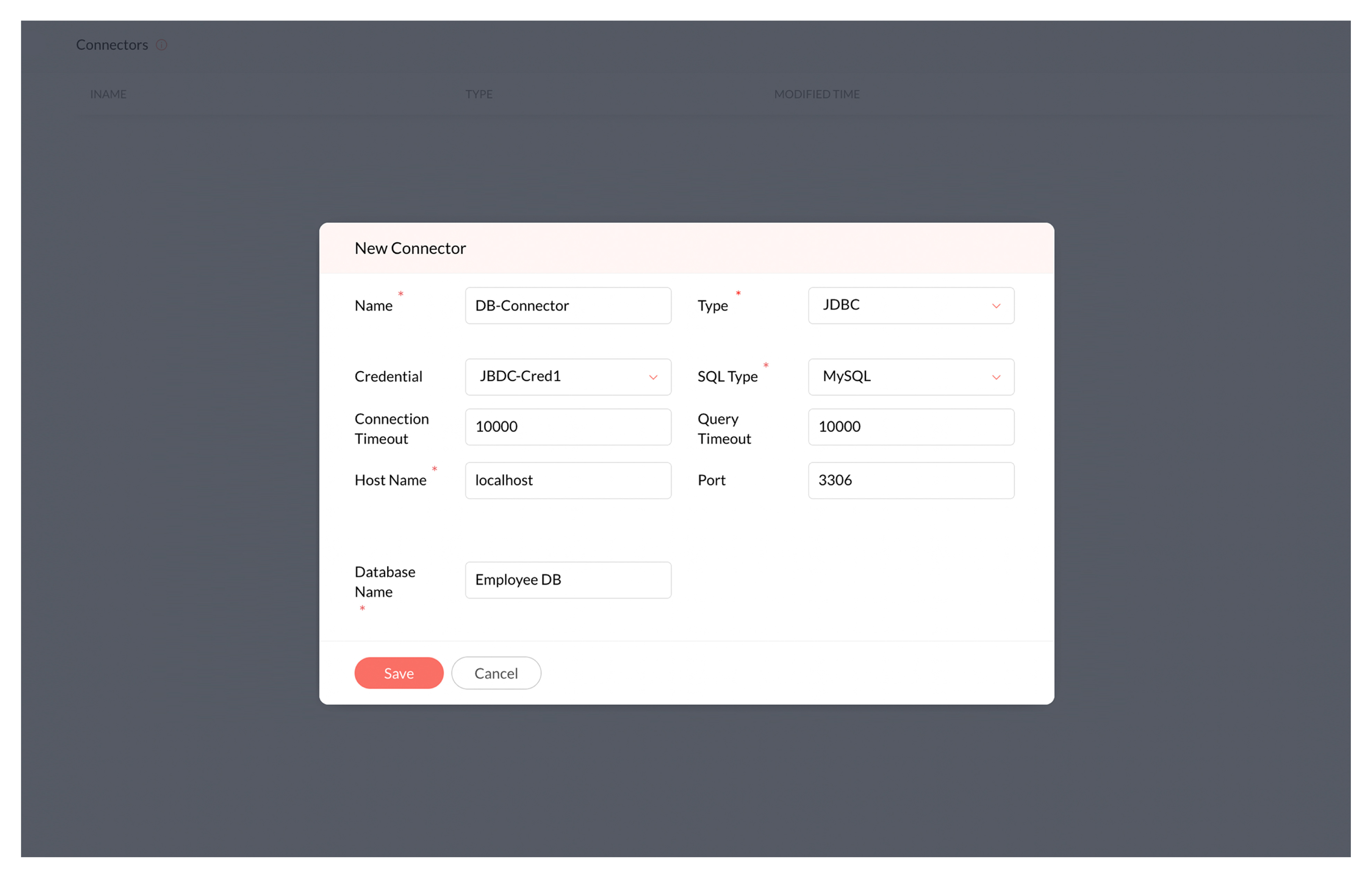

  4. Fill in the new connector details.

    1. Name: Provide a unique name for the connector.

    2. Type: Select the Type of connection. Currently Qntrl supports only JDBC.

    3. Credential: Select the credential name that has the credentials to connect to the intended database.

    4. SQL Type: Select the type of your SQL database

      1. SQL Server

      2. MySQL

      3. PostgreSQL

      4. Oracle

    5. Connection Timeout: Specify the maximum timeout limit beyond which the connection will expire.

    6. Query Timeout: Specify the maximum timeout limit beyond which the query execution will be suspended.

    7. Host Name: Enter the hostname in which the DB is hosted.

    8. Port: Enter the port number in which the DB runs.

    9. Database Name: Enter the database name to be connected.

    10. Instance: This field appears if the SQL Type is SQL Server. Enter the DB instance name.

  1. Click Save.


Edit a Connector

To update the details of an existing connector:

  1. Navigate to (settings) >> Advanced >> Bridge >> select Connectors.

  2. In the Connectors list page loaded, click on the connector name you want to edit.

  3. Make modifications and click Save.

Delete a Connector

To remove a connector from Qntrl,

  1. Navigate to(settings) >> Advanced >> Bridge >> select Connectors.

  2. Hover over the name of the connector you want to delete, click the mouse over action menu, and select Delete.

  3. Confirm your delete action.
