Custom Function: Move_Job_to_other_Blueprint
Business Scenario
In a food processing business, once the food items are packed and ready to be shipped in the Manufacturing Blueprint, the card can be moved to the Shipping Blueprint. Here, the card moves through different series of steps where the shipping details can be tracked.
Similarly, you can break down complex processes into simpler ones and move the cards from one blueprint to another one in the same board.
Steps to configure the custom function
1. Configure the Arguments

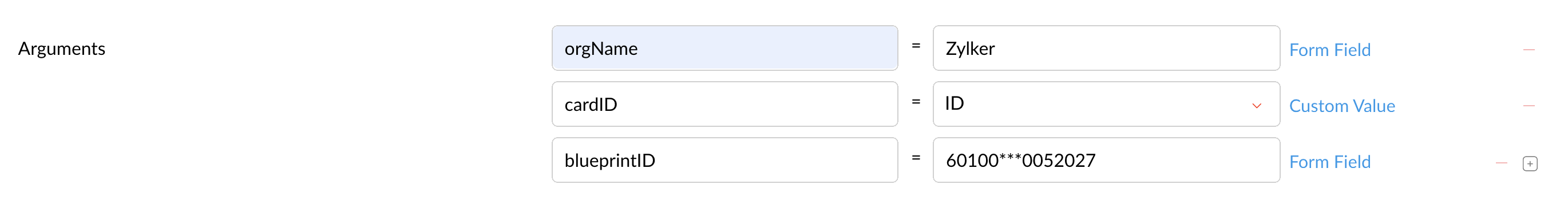

First, configure Argument Values for all the parameters used in the custom function. You can either specify the Custom Value or choose a Form Field from the dropdown. Form fields capture dynamic values from card fields corresponding to the custom function.
orgName : Specify your organization’s name. This will be available in Qntrl’s URL ( core.qntrl.com/blueprint/ <orgName>/<module>).
jobID : Choose the Card ID Form Field here. You can also specify the ID of the card. This will be available in the Card URL ( core.qntrl.com/blueprint/ <org-name>/<module>/<jobID>).
blueprintID: Specify the blueprint ID to which the card has to be moved. This will be available in the blueprint URL ( core.qntrl.com/blueprint /<orgName>/blueprint/draft/<blueprintID>) or ( core.qntrl.com/blueprint/ <orgName>/blueprint/<blueprintID>).
2. Provide authorization using Connections
Connections helps you authenticate the API call for specific scopes of Qntrl and other internal Zoho applications used in the custom function.
Click the +Connections button in Custom Functions or navigate to Connections under Advanced.
Click Create Connection in the top-right corner.
Choose Zoho Oauth from the Pick Your Service tab.
Enter a Connection Name and choose the 'Orchestly.job.ALL' Scope to connect.
2. After successful authentication, include the connection details in the response block of the custom function.
e.g: connection : "<Connection-name>"
Move_Job_to_other_Blueprint is a part of Qntrl's pre-define custom functions available in Function Gallery. However, you can also write your own custom functions in Qntrl. Related Articles
