Creating an Inbound SOAP Web Service

To create an inbound SOAP web service in Qntrl:

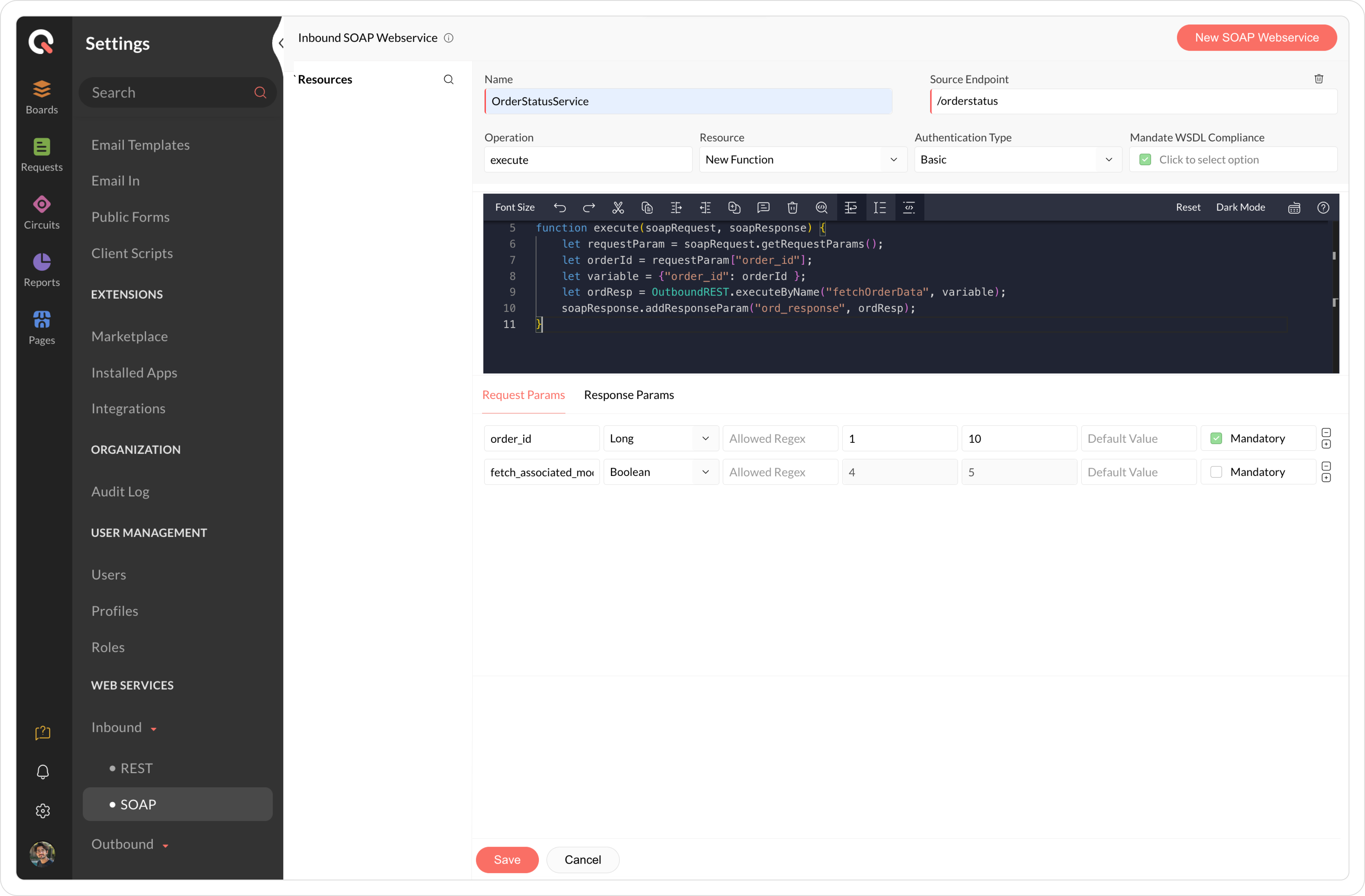

1. Navigate to(settings)  >> WEB SERVICES >> Inbound >> Select SOAP.

• Name: Provide a unique name for the SOAP service.
• Source Endpoint: The endpoint URL that will be used to interact with your SOAP service.
• Operation: The operation the service will perform. Default: execute.
• Resource: Choose an existing function or create a new one to define the actions for the SOAP service. Only SOAP-type functions will be shown in the list. If you create a new function, write the script in the editor. The function will automatically appear in the function module with a generated name, which you can change later.
• Authentication Type: Choose the authentication type for the API call. Qntrl supports three authentication types:
• OAuth
• API Key
• Basic Authentication (username and password encoded in Base64 and sent in headers).
• Mandate WSDL Compliance: Select the option to enable WSDL compliance.

• True

• Only the configured request and response parameters are allowed. Any extra parameters in the incoming request will be rejected.

• Non-configured output parameters will be excluded from the response.

• The operation name in the request must exactly match the one defined in the WSDL — otherwise, the request will fail.

• False

• The system accepts any external request, even if it contains parameters not defined in the WSDL.

• However, it still applies validation rules to the parameters you have configured.

• Request Params: Define the parameters to be passed in the request.
• Param Name: Define the name of the input parameter.
• Type: Select the data type.
• Allowed Regex: Set restrictions for the parameter values.
• Min Length: Define the minimum length of the input.
• Max Length: Define the maximum length of the input.
• Default Value: Set default values for parameters.
• Mandatory: Specify whether the parameter is mandatory. If a mandatory parameter is missing, an error will occur.
• Response Params
• Name: Define the name of the output parameter.
• Mandatory: Set whether this parameter is required in the response.

Validation ensures incoming requests meet the expected format. If validation fails, the request will be rejected.



How Resource Execution Works

Function Resource

• The script can access and process operation name, request params, request headers, complete soap payload, endpoint URL.

• You can define response params, response header params, fault code, fault message or you can define complete XML response.

• In case of an error, you can define error codes and messages, which will be communicated back to the client.

Functions Supported

Qntrl supports the following languages for building Function resources in Inbound SOAP APIs:

• JavaScript (Native or Codex engine)

• Other cloud functions – Python, Java, and Node.js are supported.

Example (Java script): Reading input parameters and writing response

/**
 * @param {SOAPRequest} soapRequest
 * @param {SOAPResponse} soapResponse
 */
function execute(soapRequest, soapResponse) {
    try {
        const operationName  = soapRequest.getOperationName();
        const endpointUri    = soapRequest.getEndpointUri();
        const requestParams  = soapRequest.getRequestParams();
        const requestHeaders = soapRequest.getHeaderParams();

        console.log("SOAP Request Received:");
        console.log("Operation:", operationName);
        console.log("Endpoint URI:", endpointUri);
        console.log("Request Params:", JSON.stringify(requestParams));
        console.log("Request Headers:", JSON.stringify(requestHeaders));

        // === Business logic here ===
        // (For now we're mocking processing)
        const processedParam1 = "processed_value_1";
        const processedParam2 = "processed_value_2";

        // Add response headers
        soapResponse.addResponseHeaderParam("server", "InternalGateway");
        soapResponse.addResponseHeaderParam("request-id", requestHeaders?.["request-id"] || "N/A");
        soapResponse.addResponseHeaderParam("timestamp", new Date().toISOString());

        // Add response params
        soapResponse.addResponseParam("result_code", "SUCCESS");
        soapResponse.addResponseParam("processed_param1", processedParam1);
        soapResponse.addResponseParam("processed_param2", processedParam2);

    } catch (e) {
        console.error("Error while processing SOAP request", e);

        soapResponse.setFaultCode(500);
        soapResponse.setFaultMessage(e.message);
    }
}

Example (Java): Reading input parameters and writing response

import com.zoho.cloud.function.Context;
import com.zoho.cloud.function.basic.*;
import org.json.JSONObject;

public class SampleSOAPFunction implements ZCFunction {

    @Override
    public void runner(Context context, BasicIO basicIO) throws Exception {
        // Read incoming request parameters
        String operationName = basicIO.getParameter("operation_name").toString();
        String requestParams = basicIO.getParameter("request_params").toString();
        String requestHeaders = basicIO.getParameter("request_headers").toString();
        String endpointURI = basicIO.getParameter("endpoint_uri").toString();

        // Prepare Response
        JSONObject responseJSON = new JSONObject();

        try {
            JSONObject responseParams = new JSONObject();
            responseParams.put("customer_id", "CUST12345");
            responseParams.put("order_id", "ORD78910");

            responseJSON.put("response_params", responseParams);

            JSONObject responseHeaders = new JSONObject();
            responseHeaders.put("client-id", "WEBPORTAL-001");
            responseHeaders.put("request-id", "REQ-20251105-ALPHA99");

            responseJSON.put("response_header_params", responseHeaders);

        } catch (Exception e) {
            // The final XML response will have only fault code and fault message.
            responseJSON.put("fault_code", "500");
            responseJSON.put("fault_message", e.getMessage());
        }

        // From above constructed response parameter and response header, final response XML will be automatically constructed and written to client.
        basicIO.write(responseJSON.toString());
        context.log("Response Sent: " + responseJSON.toString());
    }
}

Calling and Processing WSDL in Qntrl

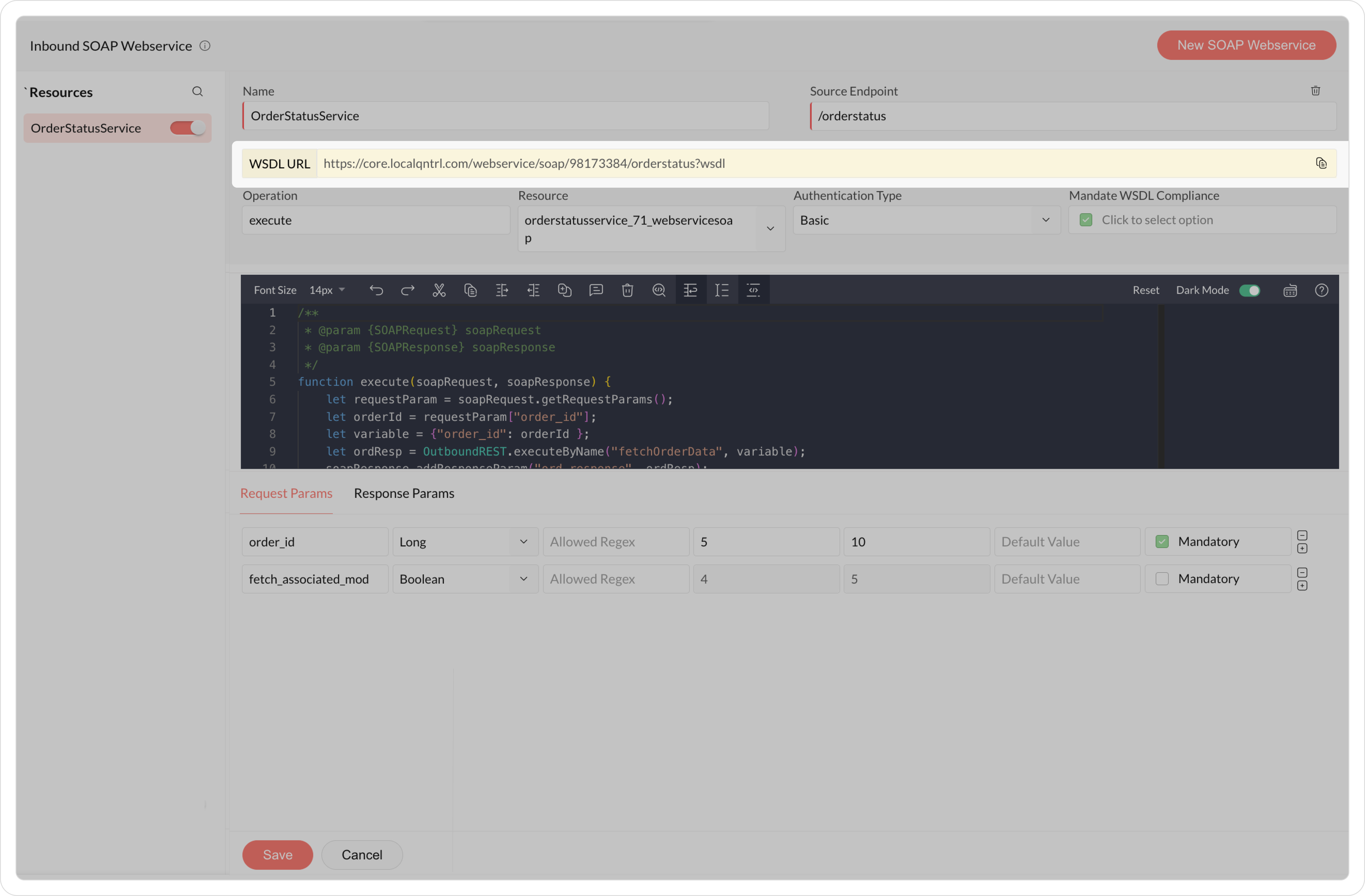

How to make a SOAP WSDL Request

Method: Any HTTP method (e.g., GET)

URL: https://core.qntrl.com/webservice/soap/<org-id>/<source_endpoint>?WSDL

Authentication (must be added in the request header):

• OAuth Token
• Header Format: Authorization: Zoho-oauthtoken <access_token>
• Required OAuth Scopes: ws_soapinbound.UPDATE
• API Key
• Header Format: Authorization: Bearer <api_key>
• Basic Authentication
• Authorization: Basic <base64-encoded username:password>

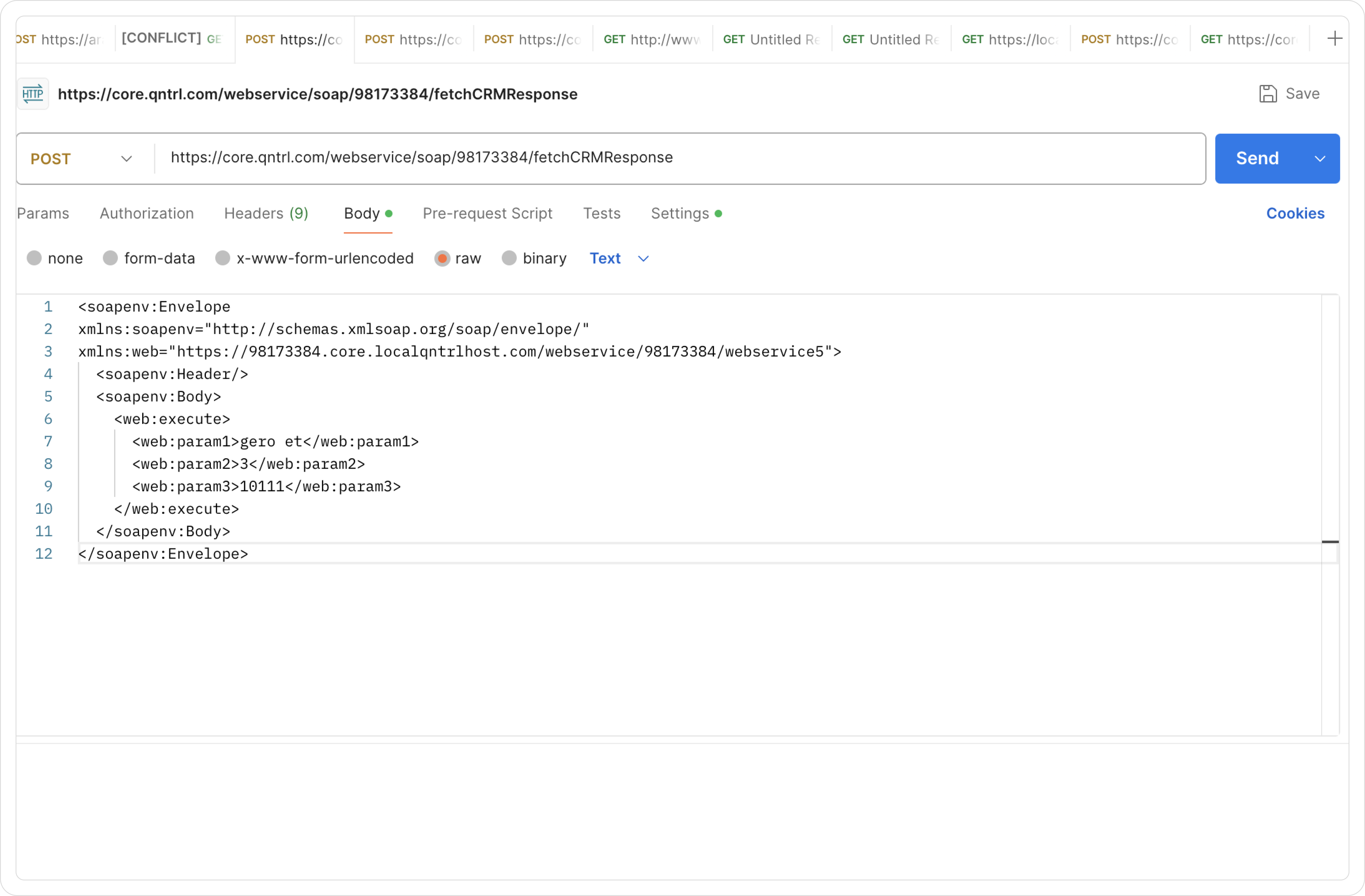

How to Send a SOAP Message Request

Method: Any HTTP method (e.g., POST)

URL: https://core.qntrl.com/webservice/soap/<org-id>/<source_endpoint>

Authentication (must be added in the request header):

• OAuth Token

• Header Format: Authorization: Zoho-oauthtoken <access_token>

• Required OAuth Scopes: ws_soapinbound.UPDATE

• API Key

• Header Format: Authorization: Bearer <api_key>

• Basic Authentication

• Authorization: Basic <base64-encoded username:password>

Body: The body should contain the raw XML request data.







  <soapenv:Envelope
    xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:ord="https://98173384.core.localqntrlhost.com/webservice/98173384/orderManagement">

  <soapenv:Header>
    <ord:AuthHeader>
      <ord:companyName>Zoho Corp</ord:companyName>
    </ord:AuthHeader>
  </soapenv:Header>

  <soapenv:Body>
    <ord:PlaceOrder>
      <ord:OrderID>12345</ord:OrderID>
      <ord:CustomerID>98765</ord:CustomerID>
      <ord:ProductID>10111</ord:ProductID>
      <ord:Quantity>3</ord:Quantity>
      <ord:OrderDate>2025-03-28</ord:OrderDate>
    </ord:PlaceOrder>
  </soapenv:Body>

</soapenv:Envelope>





Other Actions

Enable or Disable a SOAP Request

You can control the activation of individual SOAP requests from the configuration panel:

1. Navigate to(settings)  >> WEB SERVICES >> Inbound >> Select SOAP.

2. Under the Resources section on the left panel, locate the SOAP message.

3. Use the toggle button next to the message name to enable or disable it.

Delete a SOAP Request

To remove a SOAP request:

1. Navigate to(settings)  >> WEB SERVICES >> Inbound >> Select SOAP.

2. Select the message you want to delete.

3. Click the delete icon at the top right of the message details page.
