Accessing the Service Module

In Qntrl,n avigate to (settings) >> Advanced >> Bridge, and click Service to view all available services.
When a Bridge Agent is installed, two default services are automatically created:

• Core Service – Includes built-in modules such as API, DB, SSH, PowerShell, and AD.

• Qntrl Service – Handles communication and orchestration between Qntrl and Bridge.

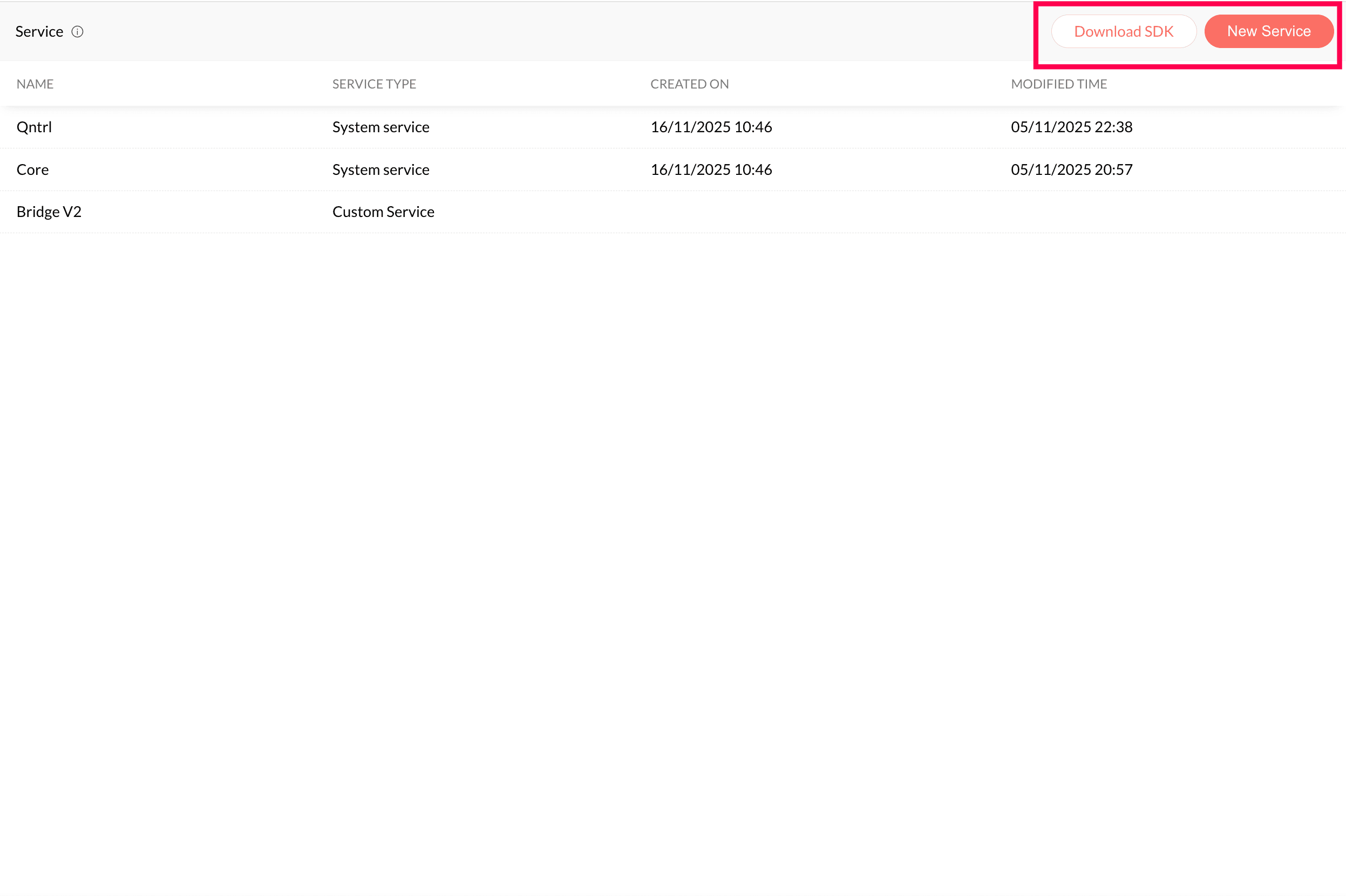

At the top-right corner of the Service page, you’ll find two main options:

• Download SDK – Build and package a custom service for Bridge.

• New Service – Create and configure a new service directly in Bridge.


Download SDK and Build a Custom Service

1. Download the SDK – Click Download SDK on the Service page to get the SDK ZIP file, which contains all required JAR libraries for local development.

2. Set Up Your Project – Extract the ZIP, add the SDK JARs to your project’s class-path, and extend the SystemService class to implement custom logic (optional if standard task execution is sufficient).
3. Create and Package the Service – Implement your code, compile it, and generate a JAR file. Package all compiled and dependent JARs (excluding SDK JARs) into a ZIP with a /lib folder. You may also include configuration files such as data-dictionary.xml.


Attach this ZIP file in the Source File field while configuring a new service.

Do not include the SDK JARs that were used during development.

Create a New Service

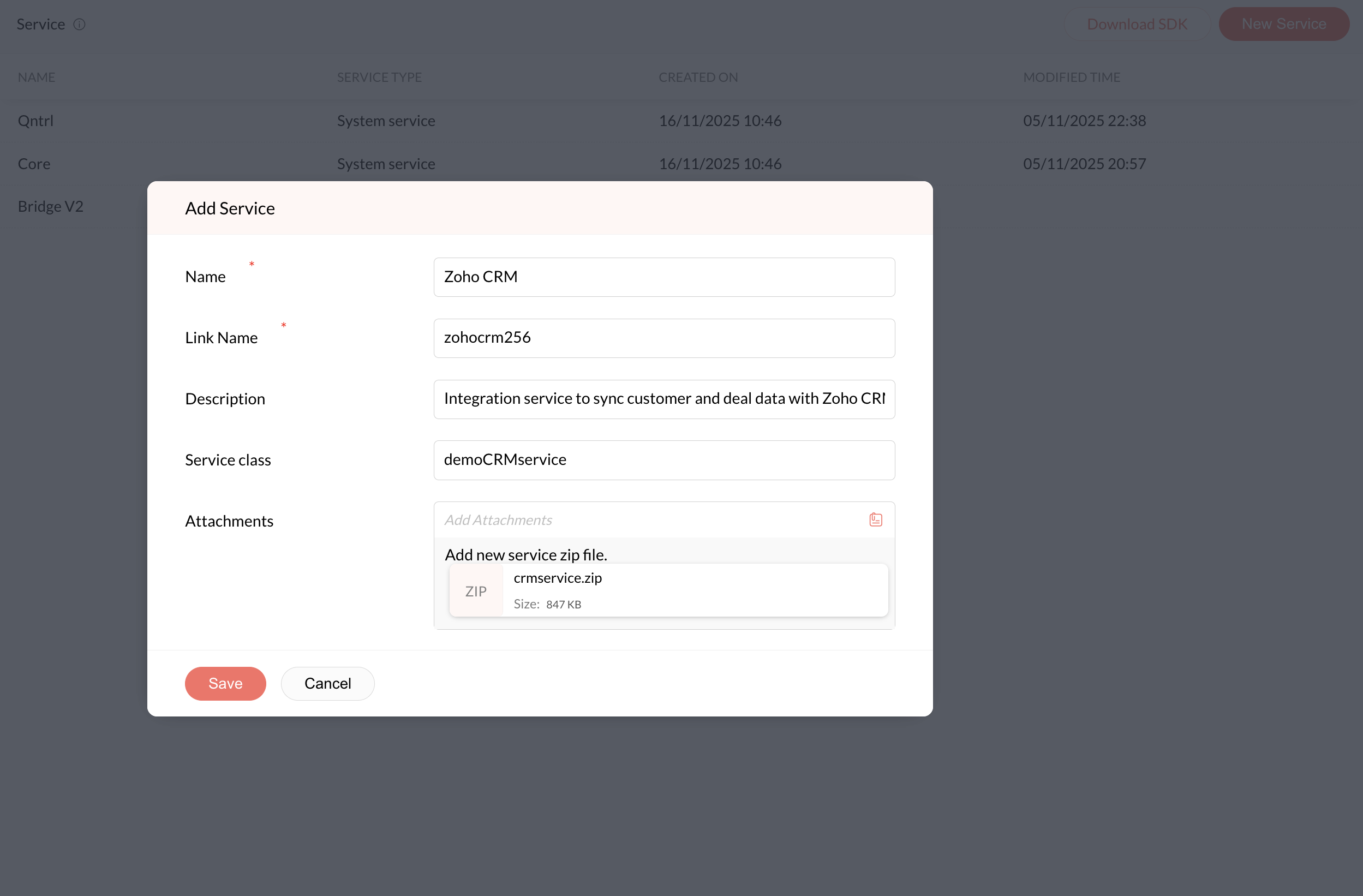

1. Click New Service at the top-right corner of the service page.
2. In the Add Service form, provide the following details:

• Name: Enter a name for identification purposes.
• Link Name: Provide a unique name used to associate the service with other bridge components.
• Description: Add a short description explaining the service’s purpose.
• Service Class: Specify the main class containing the service logic.
• Attachment: Upload a .zip file containing the service code or implementation.

3. Click Save.


Configure Service

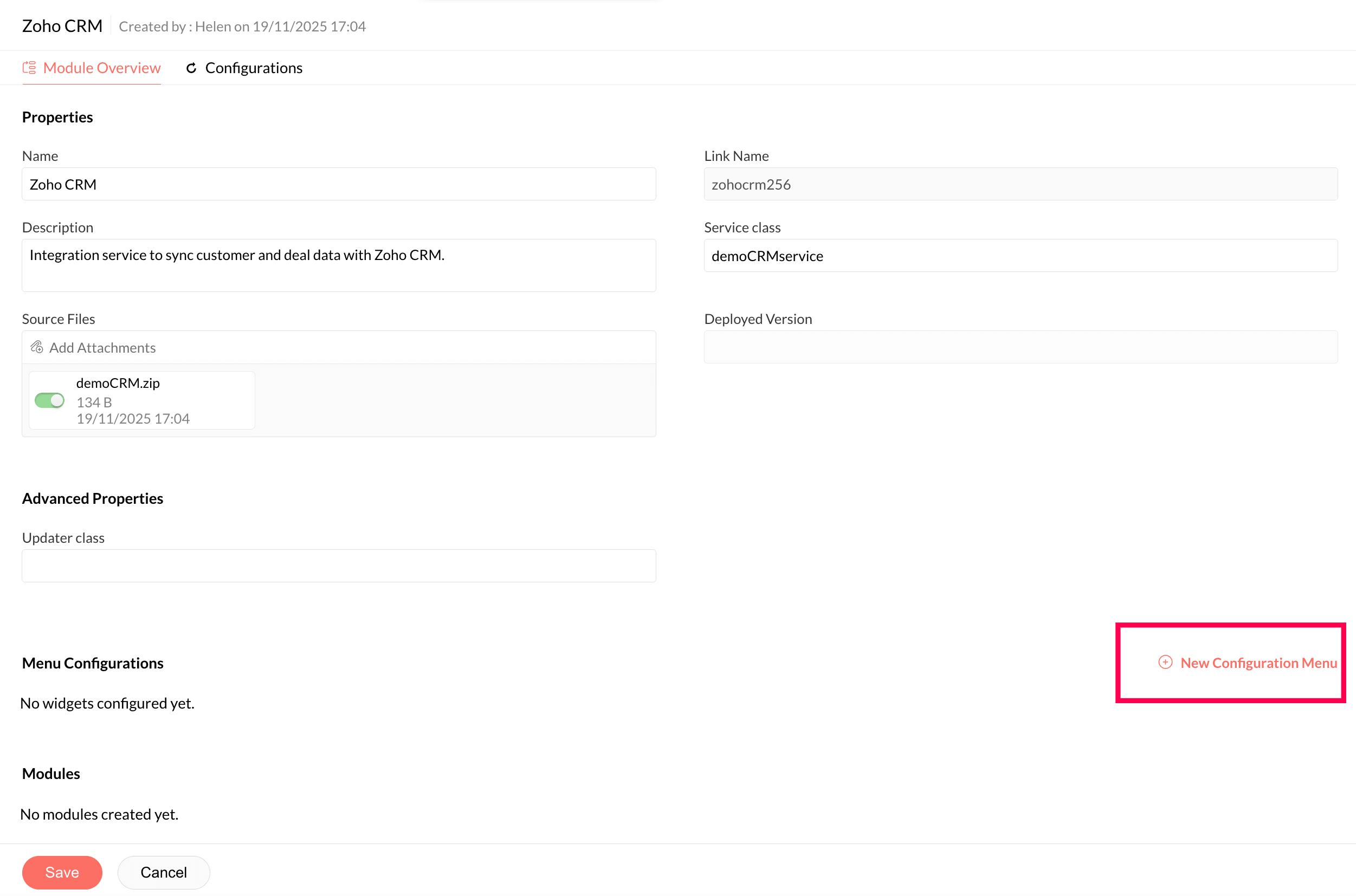

In the service list page, click on the service name to view and manage its configurations. The service page is divided into two main sections:

• Module Overview – View and configure service details and properties.

• Settings – Displays configuration widgets associated with the service. You can open these widgets to view or update required information.




Properties

• This section displays the details of the created service.

• Source File: Upload the .jar file generated from the SDK (if used).

Advanced Properties

Updater Class: Specify the name of the updater class to be invoked for migration when a new ZIP file is uploaded.

Menu Configuration

You can create widgets in this section to collect service-specific settings using custom forms. These widgets are displayed as configurable menus in either the Bridge Agent or the Qntrl Cloud interface.

To create a new menu widget:

1. In Menu Configurations section, click New Configuration Menu.

2. Provide the following details:

• Menu Name: Enter a name for the menu.

• Menu Location: Choose where the menu should appear:

• Bridge Agent – Listed under the Configuration section in the Bridge Agent.

• Bridge Cloud – Listed under Settings tab in the Service module.

3. Click Save to create the widget.


To manage widgets, hover over the widget name, click the action menu, and select Disable or Delete.

Modules

All modules created under this service (via Custom Module) will be listed in this section.

Associated Bridges

Once a service is associated with one or more Bridges, those Bridges are listed here.

You can associate services to Bridges directly from within the Bridge configuration.
